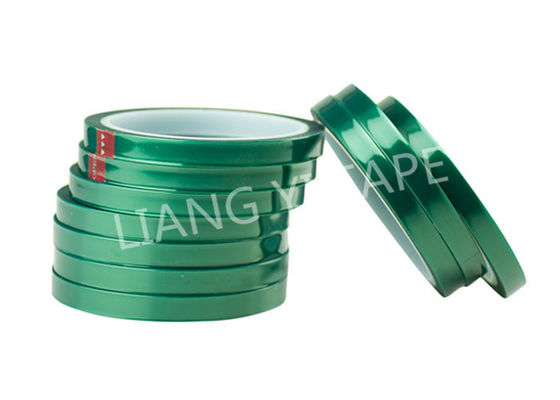

Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape

Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape

Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape
Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape

Large Image :  Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO 9001,ISO 14001,IATF 16494
Model Number: LY-30X MASK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Backing Film: Polyester PET Film Adhesive: Silicone Adhesive
Color: Green,red,blue Withstand Voltage: >3.5KV
Peeling Strength To Steel: >500g Heat Ratiing: 180℃ 0.5 Hour
Manufacturer: LIANG YI Inner Pipe: 3" Plastic Pipe
High Light:

polyester masking tape

,

polyimide masking tape



Polyimide film slilicone adhesive insulation tape for die cut masking



Product construction

Polyester film Clear color
Silicone adhesive Green color



This masking tape is made of two different layers that give the tape its distinct properties. The top layer is polyester PET film that Has good mechanical, physical, chemical and electrical properties .The bottom layer is silicone adhesive with high temperature resistant.



Specialisations:

Product No. Backing Adhesive

Total THK

(mm)

Adhesion Force

(g/25mm)

Temperature Resistance
LY-30X 0.016 0.016 PET Film Silicone 0.035 480 180℃
LY-30X 0.025 0.025 PET Film Silicone 0.055 650 180℃
LY-30X 0.05 0.05 PET Film Silicone 0.08 600 180℃
LY-30X 0.08 0.08 PET Film Silicone 0.12 630 180℃



Features:

1. Polyester film as carrier, high temperature resistance 180℃ half an hour, good insulation performance;
2. Silicone pressure sensitive adhesive, good high temperature resistant;
3. Surface protection without adhesive residue.
4. High voltage stand, withstand voltage >3.5KV.

5.Supplied on 76.2mm plastic cores,standard length is 33m.

6.Different colors to choice.



Applications:

* Powder coating masking

* High temperature painting

* Galvanization

* Die cut masking

* Stabilize optoelectronic components.
* Test or simulate integrated circuits.

* heat sample trays, reagent bottles, ventilator humidifier

* And so on.



Our advantages:

1.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours



Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.



FAQ:

Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you dont have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 600mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.



Other pictures:

Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape 0

Polyester PET Film Electrical Insulation Tape , Silicone Glue Green Insulation Tape 1
