High Performance Blue Die Cut Masking Tape For Die Cut Masking

China High Performance Blue Die Cut Masking Tape For Die Cut Masking supplier
High Performance Blue Die Cut Masking Tape For Die Cut Masking supplier High Performance Blue Die Cut Masking Tape For Die Cut Masking supplier High Performance Blue Die Cut Masking Tape For Die Cut Masking supplier High Performance Blue Die Cut Masking Tape For Die Cut Masking supplier

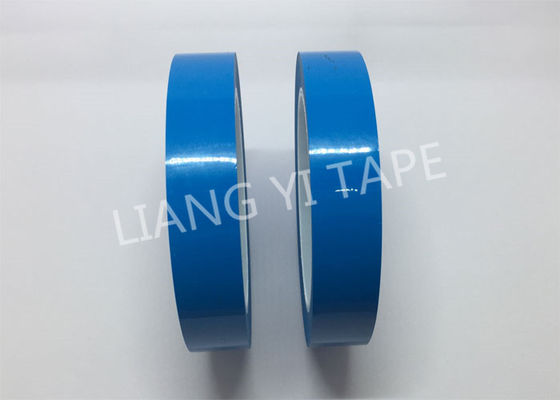

Large Image :  High Performance Blue Die Cut Masking Tape For Die Cut Masking

Product Details:

Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO 9001,ISO 14001,IATF 16494
Model Number: LY-XX* blue M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Contact Now
Detailed Product Description
Basic Film: Polyester Film Adhesive Color: Blue
Adhesive Type: Acrylic Withstand Voltage: >3500V
Breakdown Voltage: >5000V Peeling Strength: 650g
Width: Customed Length: Customed



Polyester PET film acrylic adhesive blue no-residue tape for die cutting mask



Product construction

Polyester film Clear color
Acrylic adhesive Blue color



This masking tape is made of two different layers that give the tape its distinct properties. The top layer is polyester PET film that Has good mechanical, physical, chemical and electrical properties .The bottom layer is acrylic adhesive with high temperature resistant.



Specialisations:

Product No. Backing Adhesive

Total THK

(mm)

Adhesion Force

(g/25mm)

Temperature Resistance
LY-XX* b 0.025 0.025mm PET Film acrylic 0.055 650 130℃
LY-XX* b 0.05 0.05mm PET Film acrylic 0.08 650 130℃



Features:

1. Polyester film as carrier, high temperature resistance 130℃ half an hour, good insulation performance;
2. Acrylic pressure sensitive adhesive, sticks well.
3. Surface protection without adhesive residue.
4. High voltage stand, withstand voltage >3500KV.

5.Supplied on 76.2mm plastic cores,length cutomed.

6.Color:blue.



Applications:

* Powder coating masking

* High temperature painting

* Galvanization

* Die cut masking

* Stabilize optoelectronic components.
* Test or simulate integrated circuits.

* heat sample trays, reagent bottles, ventilator humidifier

* And so on.



Our advantages:

1.UL recognized.

2.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
3.Competitive price: Factory direct sales, professional production, quality assurance,
4.Perfect service: Delivery in time, and any question will be replied in 24 hours.



Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.



FAQ:

Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you dont have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.



Other pictures:



High Performance Blue Die Cut Masking Tape For Die Cut Masking

High Performance Blue Die Cut Masking Tape For Die Cut Masking
