0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive

Good quality Fabric Insulation Tape for sales
Good quality Fabric Insulation Tape for sales
I'm Online Chat Now

0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive

China 0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive supplier
0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive supplier 0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive supplier 0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive supplier 0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive supplier

Large Image :  0.025mm Thick Transformer Insulation Tape Single Side Coated With Acrylic Adhesive

Product Details:

Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO9001,ISO14001
Model Number: LY-XX* dark blue

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Contact Now
Detailed Product Description
Color: Dark Blue Back Film: PET Film
Film Thick: 0.025mm Total Thick: 0.06mm
Recognized: UL Flame Resistance: YES
Temperature: 130°C Usage: Transformer Product

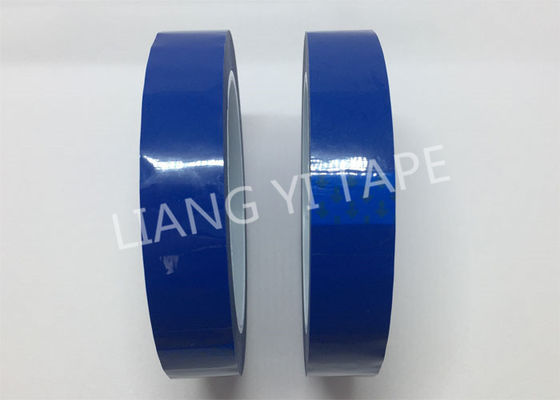

Polyester PET film flame retardant dark blue transformer insulation tape



Product introductions:

The tape is made of polyester film tape, single side coated with acrylic adhesive.Flame-retardant tape with polyester film and acrylic pressure-sensitive adhesive, It consists of materials that are represented in many UL Recognized Insulating Systems and has a UL 130°C temperature rating.



Applications:

1.Winding of transformer, coil, capacitor and electric wire

2.Excellent for decorative striping

3.Edging of a wide variety of surfaces

4.Can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying roll splices and end of rolls



UL Certification:

UL Recognized for use at temperature not exceeding 130°C,flame retardant per UL 510 standard, UL file number E246820,product category OANZ.2 .Underwriters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.



Specifications:

Material Polyester film(PET film) + acrylic adhesive
Thickness 0.055±0.005mm
Color dark blue
Temperature rating 130°C
Flame resistance yes
Elongation ≥40%
Peel strength ≥320N/M
Withstand voltage >3.5KV
Tensile strength >3.2KN/m
certification UL and SGS certification; confirm to ROHS ,REACH; sumitomo insulation system; cosmolink insulation system
Advantages 1.Manufacture: We are a factory professional in making adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
Services 1. We send sample at most 20mm width roll for free
2. Customer shall bear the freight charges
3. Sample and freight charge just a show of your sincerity
4. It is workable to most of our clients Thanks for cooperation
Sample lead time 3 days
Order lead time 5 workdays
Port Shanghai
Payment T/T


FAQ:

Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show our factory and supplying ability and we wish to establish a long time corporation with you.
