|Backing Film:||Polyester Film||Composite Material:||Non-woven|

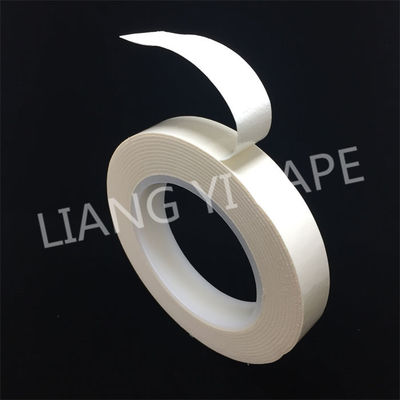

PET film 65g non - woven fabric composite white color insulation tape
Electrical tape LY-19-01-XX is a combination polyester film/polyester web coated with a acrylic thermosetting pressure-sensitive adhesive. For maxing solvent resistance and holding properties.
The tape is suggest for use in stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring, and insulating ,and for protecting start wires, leads ,terminal strips , insulating paper, end turns and connections in motors and transformers. This coating system can be used for the purposes of transformer electrical protect, motor electrical protect, tie up for electronic components, prevent components from short-circuit, flame resistance for motor, high voltage insulation, etc.
UL Component Recognition:
UL file number E246820,OANZ2.Underwiters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.
This tape was Polyester(PET) film composite with non-woven fabric ,and then coating with acrylic adhesive glue. It was single adhesive tape. Inner pipe's diameter is 77mm.
1. Temperature holding : 1hour 150°C, 2 hours 135°C, 3 hours 120°C.
2. Temperature class: 130°C
3. color: white.
4. composite material: non-woven fabric.
5. total thickness: 0.35mm.
6. elongation> 10%.
7. withstand voltage:>4.5KV.
8. length:30m, width:1mm-1100mm.
9. Strong tensile strength > 4KN/m.
10. It was flame resistance, confirm to UL 510 standard.
♦ 130C High temperature, flame resistant, stable and reliable
♦ Elongation % ≥10
♦ Withstand Voltage:> 4500KV
1.Manufacture: We are a factory professional in making adhesive .
4.UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system
|Sample provide||1. We send sample at most 20mm width roll for free
2. Customer shall bear the freight charges
3. Sample and freight charge just a show of your sincerity
4. It is workable to most of our clients Thanks for cooperation
|Sample lead time||2 days|
|Order lead time||5 workdays|
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.Narrowest 1mm,widest 1100mm.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
