Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape

Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape

Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape
Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape

Large Image :  Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: LIANG YI
Certification: ISO9001,ISO14001,IATF 16949
Model Number: LY-19-04-XX S

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Backing Cloth: White Glass Fabric Adhesive: Silicone Glue
Color: White Breakdown Voltage: >3KV
Tensile Strength: >10KN/m Peeling Strength: 700g/25mm
Inner Size: 3 Inchs Pipe Thickness: 0.18-0.22mm
High Light:

adhesive cloth tape

,

electrical adhesive tape



Single side silicone adhesive Glass fabric cloth Insulation heat resistance tape

Introduction:

Glass fiber Cloth Tape is a insulation tape that has a resin- and varnish-absorptive glass fiber cloth backing and is on a 3 inch paper core. Glass Fiber Cloth Electrical Tape is an aesthetically pleasing tape which offers excellent conformability in coil wrapping applications up to 180°C.

Data Sheet:

Properties Typical Values
Adhesive silicone
Operating Temperature 200°C
Color White color
Total Thickness 0.18mm-0.22mm
Dielectric Breakdown >3KV
Insulation Resistance 2 x 104 MW
Breaking Strength 10KN/m
Elongation (% at break) >3
Electrolytic Corrosion Factor 1.0
Adhesion to Steel >800g/25mm


Applications:

Coil wrapping for motor

Wire harness bundle.

Electrical Equipment Manufacturing.

Electrical insulation.

H-class insulation protection amid 180 °C

High heat for 200°C/392°F
Quartz tube wrapping


Features:
* Made with high quality glass fabrics
* High temperature resist, up to 180 degree
* Soft , Anti-aging, Easy punching
* Anti acid, antifungal
* Good insulation performance

Our advantages:
1.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours


Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.


FAQ:
Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.

Other pictures:

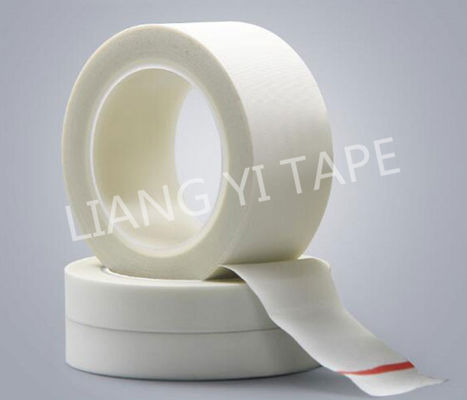

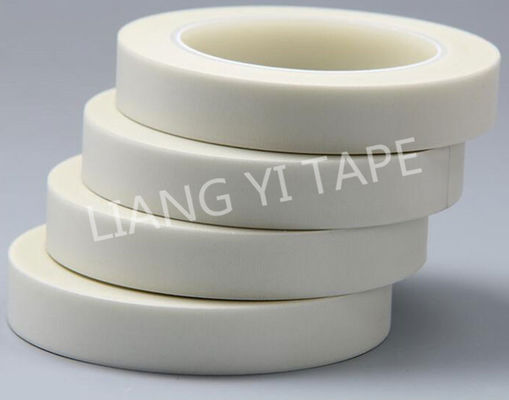

Silicone Adhesive white Glass Fabric Tape for motor , 0.18-0.22 mm Thick Electrical Insulation Tape 0
