| MOQ: | Negotiation |
| Price: | Negotiation |
| Standard Packaging: | Put tape Rolls in plastic bag, then in Carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 20000 Rolls per day |
Product descriptions:

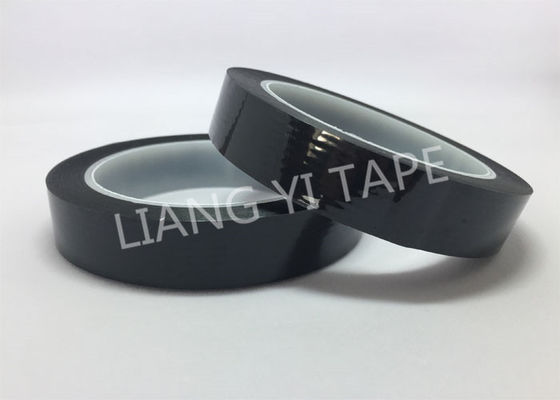

Flame-retardant tape with polyester film and acrylic pressure-sensitive adhesive, LY-XX Tape is an electrical insulating polyester film tape, which meets the flame-retardancy. requirements of UL510. It consists of materials that are represented in many UL Recognized Insulating Systems and has a UL 130°C temperature rating. It also offers excellent flagging and solvent resistance ,good wet grab ,smooth ,even unwind and is suitable for use on automated equipment.
Applications:
1. For wrapping coils ,capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors.
2. For transformer applications, providing high-voltage insulation and flame-retardant effectiveness.
3. To cover lithium battery, to prevent leakage and battery heating,while also improving power-saving durability.
4. To use on motor for insulation , because the motor rotation produce high temperature , ordinary insulating tape can't be used.
5. To tie up for electronic components for insulation effect, to prevent contact between components from a short-circuit.
UL Recognition:
UL Recognized for use at temperature not exceeding 130°C,flame retardant per UL 510 standard, UL file number E246820,product category OANZ.2 .Underwriters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.
Specifications:
| Production name | Mylar film flame retardant insulation black color thickened tape |
| Material | Polyester film(PET film) + acrylic adhesive |
| Thickness | 0.08±0.005mm |
| Color | black color |
| Feature |
♦ 130°C High temperature resistance, flame resistant, stable and reliable ♦ Elongation ≥40% ♦ Peeling strength to steel ≥250N/M ♦ Withstand Voltage : >4.5KV ♦ Strong tensile strength >4KN/m |
| Advantages |
1.Manufacture: We are a factory professional in making adhesive . 4.UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system |
| Sample provide | 1. We send sample at most 20mm width roll for free 2. Customer shall bear the freight charges 3. Sample and freight charge just a show of your sincerity 4. It is workable to most of our clients Thanks for cooperation |
| Sample lead time | 3 days |
| Order lead time | 5 workdays |
| Port | Shanghai |
| Payment | T/T |
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
Other Pictures:
|
|
