| MOQ: | Negotiation |
| Price: | Negotiation |
| Standard Packaging: | Put tape Rolls in plastic bag, then in Carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 20000 Rolls per day |

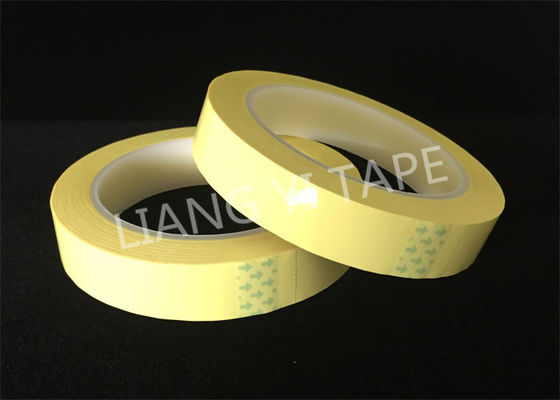

PET film insulation colorful acrylic tape non adhesive residue
Product construction
| Polyester film | Clear color |
| Acrylic adhesive | Yellow color |
This masking tape is made of two different layers that give the tape its distinct properties. The top layer is polyester PET film that Has good mechanical, physical, chemical and electrical properties .The bottom layer is acrylic adhesive with high temperature resistant.
Specialisations:
| Product No. | Backing | Adhesive |
Total THK (mm) |
Adhesion Force (N/m) |
Temperature Resistance |
| LY-XX* DY 0.025 | 0.025mm PET Film | acrylic | 0.055 | >320 | 130℃ |
| LY-XX* DY 0.05 | 0.05mm PET Film | acrylic | 0.08 | >320 | 130℃ |
Features:
1. Polyester film as carrier, high temperature resistance 130℃ half an hour, excellent insulation performance;
2. Acrylic pressure sensitive adhesive, sticks well.
3. Surface protection without adhesive residue.
4. High voltage stand, withstand voltage >3500KV.
5.Supplied on 76.2mm plastic cores,length cutomed.
6.Color: dark yellow.
Applications:
* Powder coating masking
* High temperature painting
* Galvanization
* Die cut masking
* Stabilize optoelectronic components.
* Test or simulate integrated circuits.
* heat sample trays, reagent bottles, ventilator humidifier
* And so on.
Our advantages:
1.UL recognized.
2.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
3.Competitive price: Factory direct sales, professional production, quality assurance,
4.Perfect service: Delivery in time, and any question will be replied in 24 hours.
Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer should bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
Other pictures:
|
|
