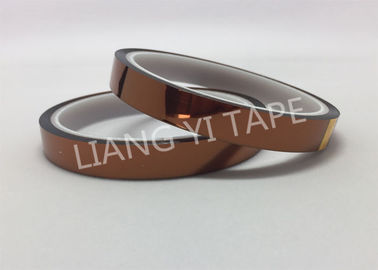

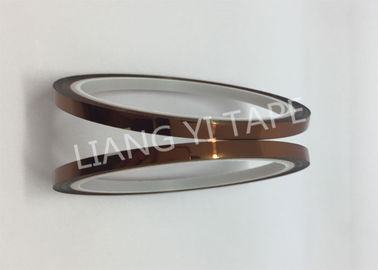

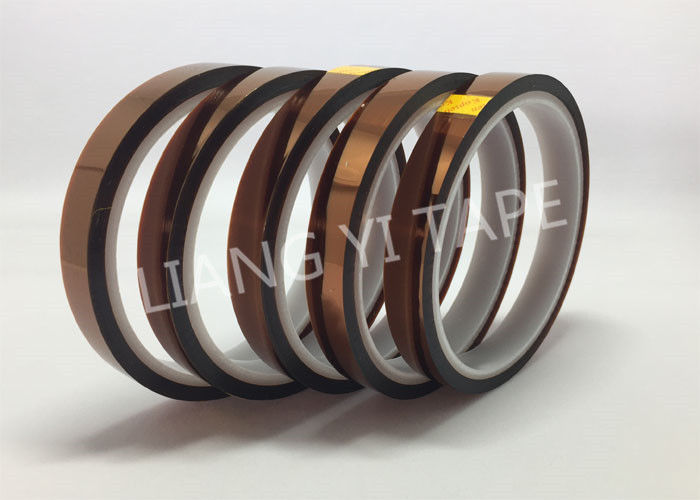

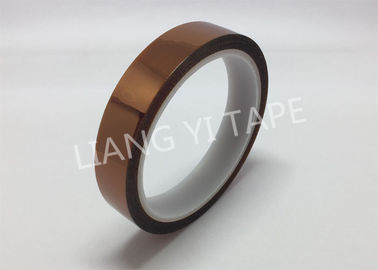

High Performance Die Cut Masking Tape For High Temperature Painting

High Performance Die Cut Masking Tape For High Temperature Painting

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Performance Die Cut Masking Tape For High Temperature Painting Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO 9001,ISO 14001,IATF 16494
Model Number: LY-20X PI-M
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Film: PI Film Adhesive: Silicone
Heat Rating: 260℃ Half An Hour Color: Amber
Adhesive Type: Pressure-sensitive Adhesive Side: Single Side
Recognized: UL Thick: 0.035mm-0.12mm
High Light:

polyester masking tape


die cut kapton tape


Die cutting PI film silicone adhesive high temperature holding insulation tape


Product construction

PI film Amber color
Silicone adhesive Clear color


This masking tape is made of two different layers that give the tape its distinct properties. The top layer is polyimide film that Has good mechanical, physical, chemical and electrical properties .The bottom layer is silicone adhesive with high temperature resistant.



Product No. Backing Adhesive

Total THK


Adhesion Force


Temperature Resistance
LY-20X 0.016 0.5 mil Polyimide Film Silicone 0.035 480g 260℃/500℉
LY-20X 0.025 1 mil Polyimide Film Silicone 0.055 650g 260℃/500℉
LY-20X 0.05 2 mil Polyimide Film Silicone 0.08 600g 260℃/500℉
LY-20X 0.08 3 mil Polyimide Film Silicone 0.12 630g 260℃/500℉



1. Polyimide film as carrier, high temperature resistance 260℃ half an hour, good insulation performance;
2. Silicone pressure sensitive adhesive, good high temperature resistant;
3. Surface protection without adhesive residue.
4. High voltage stand, withstand voltage >3.5KV.

5.Supplied on 76.2mm plastic cores,standard length is 33m.

6. Anti-static.



* Powder coating masking

* High temperature painting

* Galvanization

* Die cut masking

* Stabilize optoelectronic components.
* Test or simulate integrated circuits.

* heat sample trays, reagent bottles, ventilator humidifier

* And so on.


Our advantages:

1.UL recognized, file number E246820.

2.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
3.Competitive price: Factory direct sales, professional production, quality assurance,
4.Perfect service: Delivery in time, and any question will be replied in 24 hours


Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.



Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you dont have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 600mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
