| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | Tapes in plastic bags then in cartons |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 10000 rolls per day |

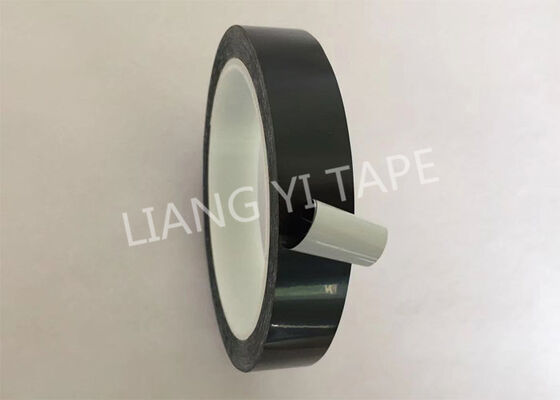

PET black adhesive tape is a high-temperature tape produced by coating PET polyester film with an acrylic adhesive and then curing it at high temperatures. It features high-temperature resistance, high-pressure resistance, and flame-retardant insulation properties.
| Total Thickness | mm | 0.055 ± 0.005 |
| Adhesive Type | – | Acrylic |
| Backing Material | – | Black PET Film |
| Color | – | Black (Opaque) |
| Optical Transmission | % | 0 (Complete Block) |
| Tensile Strength | kN/m | > 3.2 |
| Elongation at Break | % | ≥ 40 |
| Peel Adhesion | g/25mm | > 600 |
| Long-Term Temp Resistance | ℃ | 130 |
| Dielectric Breakdown Voltage | kV | > 3.5 |
| Flame Retardancy | – | Yes |
| Chemical Resistance | – | Excellent |
| Adhesive Residue | – | None |
| Adhesion Stability | – | Excellent (Long-Term) |
| Die-Cutting Compatibility | – | Rotary & Flatbed |
| Waste Stripping Performance | – | Excellent |
Q: Is this tape truly opaque and light-blocking?
A: Yes. The black PET film is completely opaque with zero light transmission. It is specifically designed for applications requiring absolute light blockage, such as LCD display bezels and optical sensor masking.
Q: What type of adhesive is used on this black PET tape?
A: The tape features a high-performance acrylic adhesive system. Acrylic offers excellent long-term stability, consistent adhesion over time, and clean removal properties—making it ideal for both permanent insulation applications and temporary die-cutting processes.
Q: Is this tape flame retardant?
A: Yes. The tape is engineered with flame retardant properties, making it suitable for electrical insulation applications in motors and transformers where fire safety compliance is required.
Q: Can this tape be used for waste removal in die-cutting?
A: Absolutely. The >3.2 kN/m tensile strength and stable acrylic adhesion make it an excellent choice for matrix stripping and waste removal. It lifts waste cleanly without tearing or leaving residue on the finished parts.
Q: What is the maximum continuous operating temperature?
A: The tape is rated for continuous use at 130℃ (266℉) . This makes it suitable for Class B (130℃) electrical insulation applications, including transformer and motor winding protection.
Q: Can this tape be custom-slit or die-cut to specific sizes?
A: Yes. The tape is fully compatible with rotary and flatbed die-cutting, laser cutting, and precision slitting operations. Custom widths, lengths, and pre-cut shapes are available upon request.
Q: Does this tape meet any specific industry standards?
A: The tape is designed to meet general requirements for Class B (130℃) electrical insulation and flame retardancy standards. Please contact us for specific compliance documentation or third-party testing inquiries.
|
|
