| MOQ: | 300 SQM |
| Standard Packaging: | CARTON |

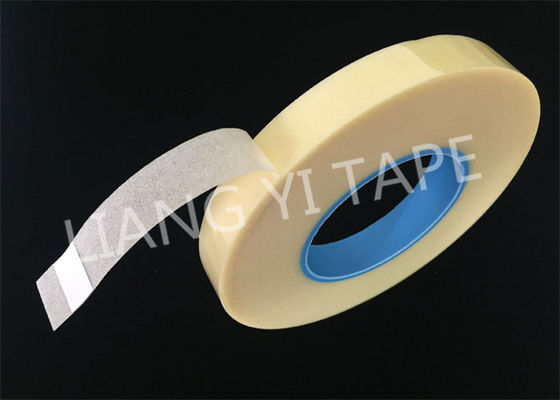

Polyester film Non-woven fabric composite 1L rubber margin tape
Introduction:
Our company was a insulating adhesive tape manufacturer named ChangShu LiangYi adhesive Tape Industry Co,.ltd. It was located in the center of Yangtze River delta, Changshu, SuZhou City, JiangSu Province, China.
Our major product was: Polyester film insulation Mylar tape (PET insulation tape),polyester /nonwoven composite insulating margin tape ,rubber margin tape, foil tape, polyimide kapton tape ,etc. The company's products have UL certification of United States and incorporated into Japan's Sumitomo Insulation Systems, Korean Cosmolink Insulation Systems, and Taihu Insulation Systems. Company's products passed the ISO9001 quality system certification, ISO14001 environmental management system certification, IATF16949 automotive industry chain quality system certification.
1. LY-19-01-15(1L)
Usages of this kind of tape:
1. For wrapping coils ,capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors.
2. For use on motors as insulation: since the motor generates high temperatures when rotating, ordinary insulating tape is not suitable.
3. To tie up for electronic components for insulation effect, to prevent contact between components from a short-circuit.
| properties | Typical value | |
| Product Name | Polyester film Non-woven fabric composite 1L rubber margin tape | |
| Film | PET + Non-woven fabric composite | |
| Adhesive | Rubber glue | |
| Color | Creamy white | |
| Temperature resistance | 130°C | |
| Flame resistance | YES(UL510) | |
| Peeling strength | ≥ 250 N/M | |
| Elongation% | LY-19-02-1L | ≥30 |
| Total thickness | LY-19-02-1L | 0.15mm |
| Withstand Voltage | LY-19-02-1L | >4.5KV |
| Feature |
♦ 130C High temperature, flame resistant, stable and reliable ♦ Elongation % ≥15 ♦ Withstand Voltage:> 4.5KV |
| Advantage |
1.Factory supplier: We are a manufacturer professional in product adhesive . 4.UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system |
| Sample provide | 1. We send sample at most 20mm width roll for free 2. Customer shall bear the freight charges 3. Sample and freight charge just a show of your sincerity 4. It is workable to most of our clients Thanks for cooperation |
| Sample lead time | 2 days |
| Order lead time | 5 workdays |
| Port | Shanghai |
| Payment | T/T;L/C |
|
|
| MOQ: | 300 SQM |
| Standard Packaging: | CARTON |
