Product Details:
Payment & Shipping Terms:
|
| Backing Film: | Polyester Film | Composite: | 65g Non-woven Fabric |
|---|---|---|---|
| Total Thick: | 0.35mm | Color: | White |
| Withstand Voltage: | >4.5KV | Length: | Normal 20m |
| Width: | Customed | Adhesive: | Acrylic |
| High Light: | electrical wire tape,electrical tape |
||

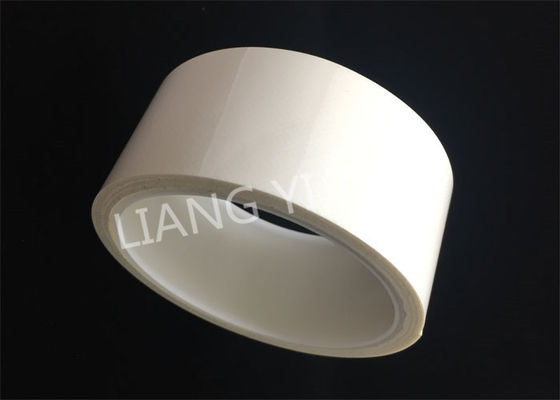

PET film fabric composite 0.35mm thick white color transformer insulation tape
Product introductions:
The tape is made of polyester film tapes composite with non-woven fabric ,and coated with wihte color acrylic adhesive.It consists of materials that are represented in many UL Recognized Insulating Systems and has a UL 130°C temperature rating.
Applications:
1.Winding of transformer, motor, coil, capacitor and electric wire
2.Excellent for decorative striping
3.Edging of a wide variety of surfaces
4.Can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying roll splices and end of rolls
UL Certification:
UL Recognized for use at temperature not exceeding 130°C,UL file number E246820,product category OANZ.2 .Underwriters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.
Specifications:
| Material | Polyester film(PET film) +65g non-woven fabric + acrylic adhesive |
| Thickness | 0.35±0.02mm |
| Color | white |
| Temperature rating | 130°C |
| Flame resistance | yes |
| Elongation | ≥10% |
| Peel strength | ≥320N/M |
| Withstand voltage | >4.5KV |
| Tensile strength | >3.2KN/m |
| certification | UL and SGS certification; confirm to ROHS ,REACH; sumitomo insulation system; cosmolink insulation system |
| Advantages | 1.Manufacture: We are a factory professional in making adhesive . 2.Competitive price: Factory direct sales, professional production, quality assurance, 3.Perfect service: Delivery in time, and any question will be replied in 24 hours |
| Services | 1. We send sample at most 20mm width roll for free 2. Customer shall bear the freight charges 3. Sample and freight charge just a show of your sincerity 4. It is workable to most of our clients Thanks for cooperation |
| Sample lead time | 3 days |
| Order lead time | 5 workdays |
| Port | Shanghai |
| Payment | T/T |
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show our factory and supplying ability and we wish to establish a long time corporation with you.
