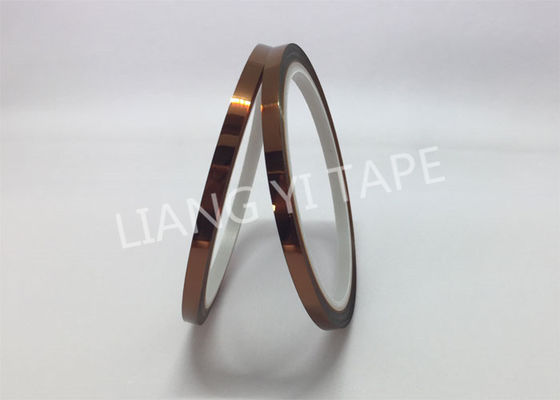

2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices

2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices

2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices
2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices 2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices 2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices 2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices

Large Image :  2 Layers 1 Mil PI Film Thermal Barrier Tape For Protecting Aircraft Electronic Devices Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO 9001,ISO 14001,IATF 16949
Model Number: LY-20X 2L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Backing Film: Polyimide Film Adhesive Type: Pressure Sensitive
Adhesive: Silicone Film Thickness: 2 Layers 0.025mm
Total Thickness: 0.11mm Withstand Voltage: >5KV
Temperature Rating: >220°C Color: Amber
High Light:

heat resistant wire tape

,

thermal resistant tape



2 layers 1 mil PI film coating silicone adhesive heat resistance tape


Description of this tape
2 layers 1 mil PI film coating silicone adhesive heat resistance tape is 2 layers 0.025mm polyimide backing with silicone adhesive. It is designed for high temperature application, used on coils, capacitors and wire harness.
●2 layers 0.025mm polyimide backing.
●Silicone adhesive.
●UL recognized, file number E246820.
●Supplied on 76.2mm plastic cores.
Like all LIANG YI tapes,this tape is available in standard and custom widths and length. Standard length is 33m.



Applications of this tape
Golden finger silicone adhesive heat resistance insulation tape is used for high temperature electrical application in which a tough, thin insulation material is required for wrapping coils, transformers, capacitors, motors and wire harness .It's also used in printed circuit board assembly as a wave solder masking tape. Such as:
1.Medical diagnostic instruments: heat sample trays, reagent bottles, ventilator humidifier , etc.
2.Stabilize optoelectronic components.
3.Test or simulate integrated circuits.
4.Enable cold weather operation of outdoor electronics such as laptop, light box, ATM, LCD
5.Protect aircraft electronic and mechanical devices in cold weather / area.



Specifications:

Product No. LY-20X golden finger
Backing film PI film
Adhesive glue Silicone
Color amber
UL No. E246820
Film thickness(mm) 2layers 0.025mm
Total Thickness (mm) 0.11mm
Length (m) Standard :33m
Width (mm) Custom widths
Peeling strength ≥200N/M
Temperature rating 220 °C
Elongation (%) ≥30
Withstand voltage >5kv


Advantages:
1.Factory supplier: We are a manufacturer professional in product adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
4.UL and SGS certification; confirm to ROHS,REACH ; sumitomo insulation system; cosmolink insulation system


Services:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.



FAQ:

Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you dont have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 600mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
