Backing Film: | Polyester Film | Film Type: | PET Film |
---|---|---|---|
Film Thick: | 1mil | Adhesive Thick: | 1mil |
Breakdown Voltage: | >5KV | Peeling Strength: | >500g/25mm |
Color: | All Colors | Temperature Rating: | 130°C |
High Light: | heat resistant insulation tape,thermal resistant tape |

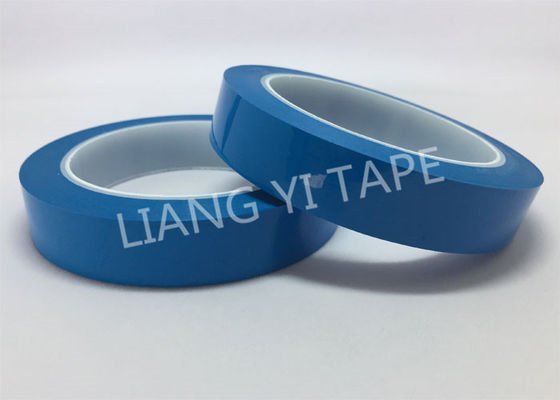

Polyester film acrylic adhesive heat resistance insulation tape
Description of this tape
Polyester film acrylic adhesive heat resistance insulation tape is a 1mil polyester film backing with acrylic adhesive. It is designed for high temperature application, used on coils, capacitors and wire harness.
●1mil polyester backing.
●acrylic adhesive.
●Supplied on 3 inch plastic cores.
Like all LIANG YI tapes,this tape is available in standard and custom widths and length. Standard length is 66m.
Applications of this tape
Polyester film acrylic adhesive heat resistance insulation tape is used for high temperature electrical application in which a tough, thin insulation material is required for wrapping coils, transformers, capacitors, motors and wire harness .It's also used in printed circuit board assembly as a wave solder masking tape. Such as:
1.Medical diagnostic instruments: heat sample trays, reagent bottles, ventilator humidifier , etc.
2.Stabilize optoelectronic components.
3.Test or simulate integrated circuits.
4.LED dot matrix, digital tube, LED, high temperature glue covered.
5.Powder coating, e-coating, electric plating and anodizing, circuit, or holding parts in place during rework or repair of electronic components
Specifications:
Product No. | LY-XX* |
Backing film | Polyester film |
Adhesive glue | acrylic |
Color | all colors |
UL No. | No |
Film thickness(mm) | 0.025mm |
Total Thickness (mm) | 0.055mm |
Length (m) | Standard :66m |
Width (mm) | Custom widths |
Peeling strength | ≥250N/M |
Temperature rating | 150 °C |
Elongation (%) | ≥40 |
Withstand voltage | >3.5kv |
Advantages:
1.Factory supplier: We are a manufacturer professional in product adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
4.UL and SGS certification; confirm to ROHS,REACH ; sumitomo insulation system; cosmolink insulation system
Services:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
