Product Details:
Payment & Shipping Terms:
|
Flame Retardant: | Yes | Colors: | Different Color To Choice |
---|---|---|---|
Basic Film: | PVC Film | Adhesive: | Rubber |
Peeting To Steel: | >1.5N/cm | Heat Rating: | 105°C |
High Light: | pvc adhesive tape,colored electrical tape |

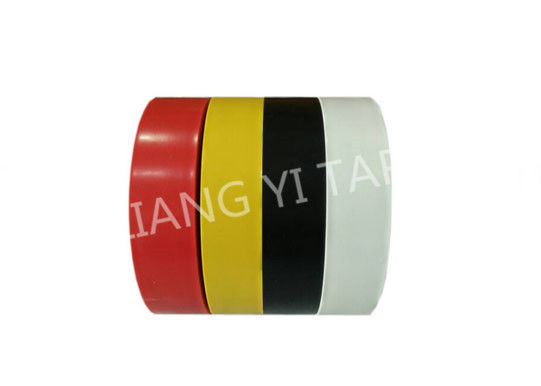

PVC insulation colorful flame retardant electrical tape
Introduction:
PVC electrical is made of soft polyvinyl Choride(spvc) as the backing material,which are coated with rubber pressure-sensitive adhesive. Good resistant to high voltage, temperature ,moisture and flame.Common pvc insulation tape is widely used for connecting separate electrical wires , electrical insulating and protection applications. Available in customed of widths ,lengths and colours.
Characteristics:
(1) PVC Electrical Tape for all wire and cable joints rated up to 600 V.
(2) Environmental friendly pressure sensitive adhesive, Unique glue-formulation and strong adhesive.
(3) Insulating, water proof and excellent resistance to corrosion.
(4) Flame retardant.
(5) Different colors to choice.
Applications:
(1) Terminal processing of power-cables, wiring and insulation of electrical joints.
(2) Protection, binding, and identification of cables and pipes.
(3) Protection, repairs, and binding for homes, construction, tying works, and other uses.
(4) Bundling and repairing automotive wire harnesses.
Technical Parameter:
Pro No. | Thickness | Tensile strength | Elongation | Peel to steel | Peel to back | Temperatrue rating | Flame resistance |
LYFC110 | 0.11mm | 18N/cm | 180% | 1.5N/cm | 1.5N/cm | 105°C | <2S |
LYFC120 | 0.12mm | 19N/cm | 190% | 1.5N/cm | 1.5N/cm | 105°C | <2S |
LYFC130 | 0.13mm | 20N/cm | 200% | 1.5N/cm | 1.5N/cm | 105°C | <2S |
LYFC150 | 0.15mm | 22N/cm | 200% | 1.5N/cm | 1.5N/cm | 105°C | <2S |
LYFC180 | 0.18mm | 28N/cm | 220% | 1.5N/cm | 1.5N/cm | 105°C | <2S |
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
