Non Woven Fabric Transformer Insulation Tape With Polyester Film 0.28mm Thickness

Non Woven Fabric Transformer Insulation Tape With Polyester Film 0.28mm Thickness

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Non Woven Fabric Transformer Insulation Tape With Polyester Film 0.28mm Thickness Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LIANGYI
Certification: UL,ISO9001,ISO14001
Model Number: LY-19-01-40 white
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Color: White Back Film: Polyester Film
Middle Layer: 40g Non-woven Fabric Total Thick: 0.28mm
Voltage Holding: >4.5KV Tensile Strength: >3.2KN/M
Widht: Customed Length: 20m
High Light:

electrical wire tape


flame retardant tape


PET film fabric composite 0.28mm thick white color transformer insulation tape
Product introductions:

The tape is made of polyester film tapes composite with non-woven fabric ,and coated with wihte color acrylic adhesive.It consists of materials that are represented in many UL Recognized Insulating Systems and has a UL 130°C temperature rating.
1.Winding of transformer, motor, coil, capacitor and electric wire
2.Excellent for decorative striping
3.Edging of a wide variety of surfaces
4.Can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying roll splices and end of rolls
UL Certification:
UL Recognized for use at temperature not exceeding 130°C,UL file number E246820,product category OANZ.2 .Underwriters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.

MaterialPolyester film(PET film) +40g non-woven fabric + acrylic adhesive
Temperature rating130°C
Flame resistanceyes
Peel strength≥320N/M
Withstand voltage>4.5KV
Tensile strength>3.2KN/m
certificationUL and SGS certification; confirm to ROHS ,REACH; sumitomo insulation system; cosmolink insulation system
Advantages1.Manufacture: We are a factory professional in making adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
Services1. We send sample at most 20mm width roll for free
2. Customer shall bear the freight charges
3. Sample and freight charge just a show of your sincerity
4. It is workable to most of our clients Thanks for cooperation
Sample lead time3 days
Order lead time5 workdays

Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show our factory and supplying ability and we wish to establish a long time corporation with you.
Other pictures:

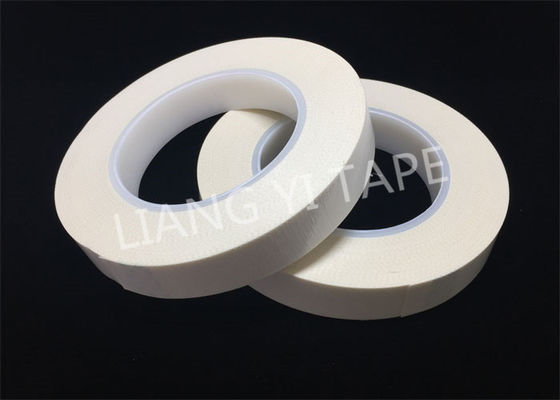

Non Woven Fabric Transformer Insulation Tape With Polyester Film 0.28mm Thickness 0
