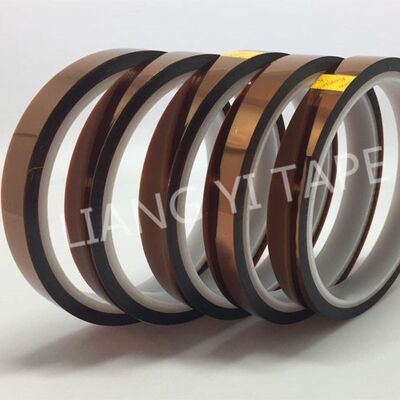

High-Temperature Insulation Silicone Adhesive Polyimide Tape Kapton Tape
  • name
  • name
  • name
  • name
  • name
  • name
  • name

High-Temperature Insulation Silicone Adhesive Polyimide Tape Kapton Tape

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 5-8 workdays
Payment Method: T/T
Supply Capacity: 10000 rolls per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LiangYi
Certification
UL,ISO 9001 , IATF 16949
Model Number
LY-20X
Color:
Amber
Backing Film:
Polyimide Film
Length:
Customizable
Width:
Customizable
Adhesive:
Silicone
Usage:
Motor
Highlight:

Silicone Adhesive Polyimide Tape

,

Polyimide Kapton Tape

,

High Temperature Polyimide Tape

Product Description
Product Overview:

Our High-Temperature Polyimide Tape, commonly known as Gold Finger Tape or Kapton Tape.It is made by coating a PI film with silicone, and offers excellent insulation and heat resistance.

Key Features:
  1. Extreme Temperature Resistance
  2. High Dielectric Strength
  3. Flame Retardant
  4. Solvent & Chemical Resistant
  5. Clean Removal
  6. Easy Tear & Conformability
Primary Applications:
  1. H-Class Motor & Transformer Insulation: Used for Class H (180°C) motor and transformer coil insulation wrapping and end finishing .
  2. High-Temperature Coil End Binding: Securely fixes and protects high-temperature coil ends .
  3. Capacitor & Wire Wrapping: Provides insulation and protection for capacitors, wire splicing, and electrical connections .
  4. Medical diagnostic instruments: heat sample trays, reagent bottles, ventilator humidifier , etc.
  5. Relay & Inverter Protection: Ideal for relays, photovoltaic inverters, and EV charging stations requiring high-temperature and moisture protection .
Certifications & Quality Assurance:

Quality and safety are paramount. Our insulating tape is manufactured to the highest standards and holds internationally recognized certifications:

  1. UL Recognition: Certified by Underwriters Laboratories (UL) under File Number E246820, confirming its safety and performance.
  2. Comprehensive Testing: Backed by detailed test reports from SGS and CTI, verifying its physical, electrical, and chemical properties.
High-Temperature Insulation Silicone Adhesive Polyimide Tape Kapton Tape 0
Specifications:
Product Name Polyimide High-Temperature Insulation Tape Kapton Tape
Material Silicone adhesive + Polyimide film
Total Thickness 0.05mm-0.06mm ; 0.075mm-0.085mm
Color Amber
Features
  1. High-Temperature Resistance: Withstands up to 180℃, Flame Retardant
  2. Elongation at Break: ≥40%
  3. Breakdown Voltage:

    4 kV (for 0.025mm backing thickness)

    6 kV (for 0.05mm backing thickness)

  4. Electrical Insulation
  5. Applications: Suitable for the production of electronic components such as transformers, motors, mobile phones, and die-cut parts.
  6. High Tensile Strength.
Advantage
  1. Factory Direct: Guaranteed quality from the source.
  2. Competitive Pricing: Reasonable prices as a direct manufacturer.
  3. Reliable Service: Timely delivery & 24-hour issue response.
  4. UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system.
Sample Provide
  1. Samples within 20mm width are free of charge.
  2. The customer is responsible for the shipping cost.
  3. Provision of samples and payment of shipping costs demonstrate the customer's serious intent to purchase.
  4. It is workable to most of our clients Thanks for cooperation
Sample Shipment Within 72 hours
Order Shipment Date 5-8works
Payment T/T
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A: We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 1300mm.
Q:What certificates do you have for your products?
A: UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
Tags:

electrical wire tape,

electrical tape,

flame retardant tape
