Polyester Film Non Woven Fabric Tape , Rubber Adhesive Yellow Insulation Tape

Polyester Film Non Woven Fabric Tape , Rubber Adhesive Yellow Insulation Tape

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Polyester Film Non Woven Fabric Tape , Rubber Adhesive Yellow Insulation Tape Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LIANG YI
Certification: UL,ISO9001,ISO14001,IATF16949
Model Number: LY-19-02-3L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Color: Yellow Backing Film: Polyester PET
Temperature Resistance: 130°C Elongation: >15%
Thickness: 0.38mm Withstand Voltage: >4.5KV
Adhesive Type: High Viscosity Peeling Strength: >1000g/25mm
High Light:

fabric adhesive tape


fabric electrical tape


Polyester film non-woven fabric composite 3L rubber adhesive yellow insulation tape



Electrical tape LY-19-02-XX is a combination polyester film/polyester web coated with a rubber thermosetting pressure-sensitive adhesive. For maxing solvent resistance and holding properties.
The tape is suggest for use in stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring, and insulating ,and for protecting start wires, leads ,terminal strips , insulating paper, end turns and connections in motors and transformers. This coating system can be used for the purposes of transformer electrical protect, motor electrical protect, tie up for electronic components, prevent components from short-circuit, flame resistance for motor, high voltage insulation, etc.


UL Component Recognition:

UL file number E246820,OANZ2.Underwiters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.


Tape structure:

This tape was Polyester(PET) film composite with non-woven fabric ,and then coating with a rubber adhesive glue. It was single adhesive tape. Inner pipe's diameter is 77mm.



1. Temperature holding : 1hour 150°C, 2 hours 135°C, 3 hours 120°C.

2. Temperature class: 130°C

3. color: maize yellow.

4. composite material: non-woven fabric.

5. total thickness: 0.38mm.

6. elongation> 15%.

7. withstand voltage:>4.5KV.

8. length:30m, width:1mm-1100mm.

9. Strong tensile strength > 4KN/m.

10. It was flame resistance, confirm to UL 510 standard.




1.Factory supplier: We are a manufacturer professional in product adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours

4.UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system

Sample provide 1. We send sample at most 20mm width roll for free
2. Customer shall bear the freight charges
3. Sample and freight charge just a show of your sincerity
4. It is workable to most of our clients Thanks for cooperation
Sample lead time 2 days
Order lead time 5 workdays
Port Shanghai
Payment T/T;L/C



Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1mm,widest 1100mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.


Other pictures:

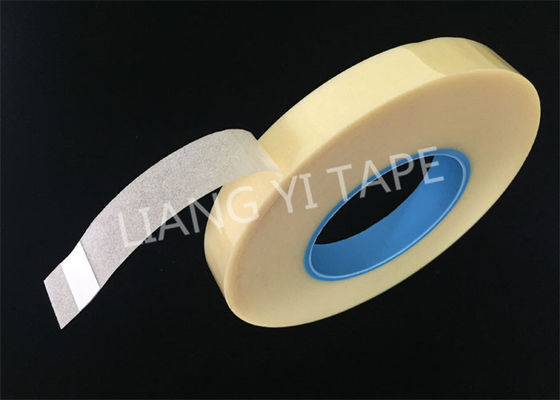

Polyester Film Non Woven Fabric Tape , Rubber Adhesive Yellow Insulation Tape 0
