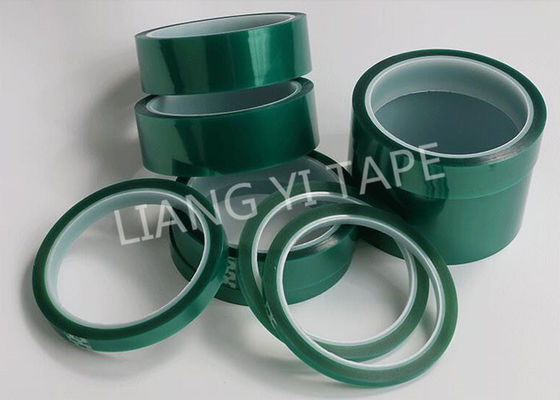

Heat Resistant PET Film Backing Green Insulation Tape 0.055mm

Heat Resistant PET Film Backing Green Insulation Tape 0.055mm

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Heat Resistant PET Film Backing Green Insulation Tape 0.055mm Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LiangYi
Certification: ISO 9001
Model Number: LY-30X
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Color: Green Backing Film: PET
Film Thick: 0.038mm Total Thick: 0.055mm
Adhsive: Silicone Peeling Strength: >800g/25mm
High Light:

PET Film Backing Green Insulation Tape

,

Green Insulation Tape 0.055mm

,

heat resistant electrical tape 0.055mm

Polyester PET film silicone high adhesive green color heat resistance tapes


Description of this tape
Polyester film silicone adhesive green color heat resistance tape is a 0.038mm polyester film backing with silicone adhesive. It is designed for high temperature application, used on coils, capacitors and wire harness.
●0.038mm polyester backing.
●silicone adhesive.
●Supplied on 3 inch plastic cores.
Like all LIANG YI tapes,this tape is available in standard and custom widths and length. Standard length is 33m.



Applications of this tape
Polyester film silicone adhesive green color heat resistance tape is used for high temperature electrical application in which a tough, thin insulation material is required for wrapping coils, transformers, capacitors, motors and wire harness .It's also used in printed circuit board assembly as a wave solder masking tape. Such as:

2.solar module, Lamination process.
1.Medical diagnostic instruments: heat sample trays, reagent bottles, ventilator humidifier , etc.
2.Stabilize optoelectronic components.
3.Test or simulate integrated circuits.
4.LED dot matrix, digital tube, LED, high temperature glue covered.
5.Powder coating, e-coating, electric plating and anodizing, circuit, or holding parts in place during rework or repair of electronic components

6.Splicing Tape



Specifications:

Product No. LY-30X green
Backing film Polyester film
Adhesive glue silicone
Color green
cerification ISO 9001  . IATF 16949
Film thickness(mm) 0.038mm
Total Thickness (mm) 0.055mm
Length (m) 33m
Width (mm) Custom widths
Peeling strength ≥800g/25mm
Temperature rating 150 °C
Elongation (%) ≥40
Withstand voltage >3.5kv


Advantages:
1.Factory supplier: We are a manufacturer professional in product adhesive .
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
4.UL and SGS certification; confirm to ROHS,REACH ; sumitomo insulation system; cosmolink insulation system


Services:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.



FAQ:

Q: Is the sample free?

A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.

Q: What is the lead time?

A: It usually take 5~8 days to finish your order.

Q: What about the width of the tape?

A:We could cut any roll width according to the customer’s requirement.Narrowest 1.5mm,widest 600mm.

Q:What certificates do you have for your products?

A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.

Q: Will you accept us to visit you?

A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
