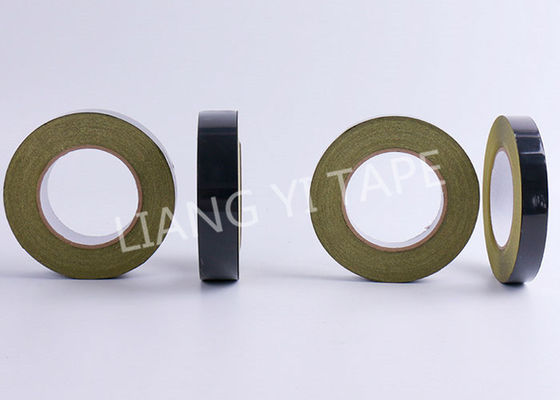

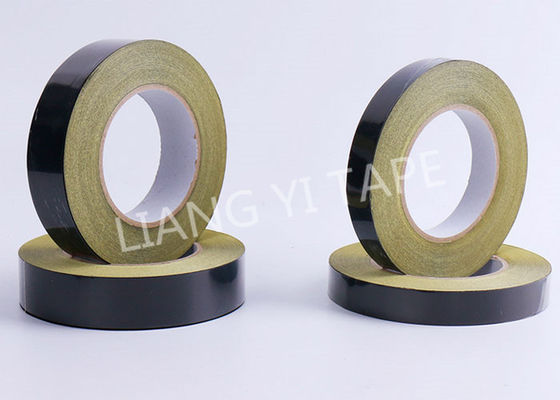

Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle

Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle Get Best Price

Product Details:
Place of Origin: China
Brand Name: LIANG YI
Certification: ISO9001,ISO14001,IATF 16949
Model Number: LY-1905-XX black
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Put tape Rolls in plastic bag, then in Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20000 Rolls per day
Detailed Product Description
Backing Cloth: Acetate Fabric Color: Black
Adhesive: Acrylic Temperatrue Rating: 105°C
Total Thickness: 0.18mm Elongation: 10%
Breakdown Voltage: 2000V Peel To Steel: 4.4N/10mm
High Light:

acrylic adhesive tape


electrical adhesive tape


Black color acetate fiber cloth acrylic adhesive insulation tape
Acetate Cloth Tape is a printable tape that has a resin- and varnish-absorptive acetate cloth backing and is on a 3 inch paper core. Acetate Cloth Electrical Tape is an aesthetically pleasing tape which offers excellent conformability in coil wrapping applications up to 105°C.
Data Sheet:

Properties Typical Values
Adhesive Acrylic
Operating Temperature 105°C/221°F
Color Black color
Total Thickness 7.0 mil/0.178 mm
Dielectric Breakdown 2000 volts
Insulation Resistance 2 x 104 MW
Breaking Strength 35 lb./in. (62 N/10 mm)
Elongation (% at break) 10
Electrolytic Corrosion Factor 1.0
Adhesion to Steel 40oz/in. (4.4 N/10 mm)


Conformable; for use as coil cover.


Wire harness bundle.

Electrical Equipment Manufacturing.

Electrical insulation.

Products for the engine compartment have to be highly resistant to abrasion, while in the passenger compartment, tapes are applied to reduce noises.
* Made with high quality acetate fabrics
* High temperature resist, up to 150 degree
* Soft , Anti-aging, Easy punching
* Anti acid, antifungal
* Good insulation performance
Our advantages:
1.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours

Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.

Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
Other pictures:
Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle 0
Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle 1
Anti Aging Acrylic Fabric Insulation Tape For Wire Harness Bundle 2
