| MOQ: | Negotiation |
| Price: | Negotiation |
| Standard Packaging: | Put tape Rolls in plastic bag, then in Carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 20000 Rolls per day |

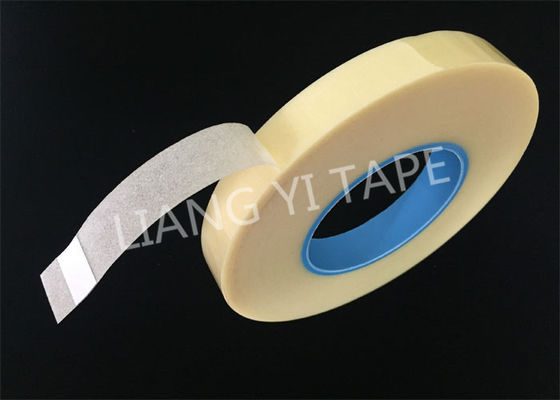

Non-woven fabric yellow color rubber adhesive insulation heat resistance tape
Introduction:
Non-woven fabric Tape is a insulation tape that has a resin- and varnish-absorptive,It is Polyester PET film composite with non-woven fabric cloth backing and is on a 3 inch paper core. Non-woven fabric Electrical Tape is an aesthetically pleasing tape which offers excellent conformability in coil wrapping applications up to 130°C.
Data Sheet:
| properties | Typical value | |
| Product Name | Non-woven fabric yellow color rubber adhesive insulation heat resistance tape | |
| Film | PET | |
| Adhesive | Rubber glue | |
| Color | yellow | |
| Temperature resistance | 130°C | |
| Flame resistance | YES(UL510) | |
| Peeling strength | ≥ 250 N/M | |
| Elongation% | LY-19-02-1L | ≥30 |
| LY-19-02-2L | ≥20 | |
| LY-19-02-3L | ≥15 | |
| Total thickness | LY-19-02-1L | 0.15mm |
| LY-19-02-2L | 0.28mm | |
| LY-19-02-3L | 0.38mm | |
| Withstand Voltage | LY-19-02-1L | >4.5KV |
| LY-19-02-2L | >4.5KV | |
| LY-19-02-3L | >4.5KV | |
Applications:
Motor Coil Winding
Wire harness bundle.
Electrical Equipment Manufacturing.
Electrical insulation.
H-class insulation protection amid 130 °C
Transformers wrapping.
Features:
* Made with high quality Polyester PETfilm composite with non-woven fabrics
* High temperature resist, up to 130 degree
* Soft , Aging resistant, Easy to punch
* Anti acid, antifungal
* Good insulation performance
Our advantages:
1.4.UL and SGS recognized; confirm to ROHS ,REACH; sumitomo,cosmolink insulation system
2.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
3.Competitive price: Factory direct sales, professional production, quality assurance,
4.Perfect service: Delivery in time, and any question will be replied in 24 hours
Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
